Essential Oil Filling Capping Labeling Machine Linear Line
1.Automatic Essential Oil Filling Machine line

Application:
This machine is applied for 15ml- 50ml essential oil filling capping and labeling line in plastic or glass bottles.

The machine can be customized to be completed with turn table feeder, several heads filler + capping system (dropper feeder + plugging + cap feeder + capper), labeling machine and turn table collector.

Features:
●  There is high accuracy cam mechanism to provide Graduated dial to locate the cap on， accelerating cam transmission capping head lifting; constant torsion capping, mechanical pump dosing and filling; touch screen control, no bottle no filling, no inside and outside cap, with advantage of stable transmission, accurate location, accurate dosing, convenient operation etc.

●  The equipment adopts four-row double-row piston pump to fill, and then is sent into the positioning dial by the conveyor belt, and the lid is rotated intermittently to enter the lid station to automatically cover the lid; the double-headed lid is used for sealing and the lid is four blades. Double-knife rolls down the edge with double-screw thread.

●   This filling system is widely suitable for small bottle filling and capping, made in SUS304 stainless steel and SUS316 anti-corrosion stainless steel for the part in contact with material, which is complied with GMP standard.

The post Essential oil filling machine line first appeared on Filling Machine Manufacturer.

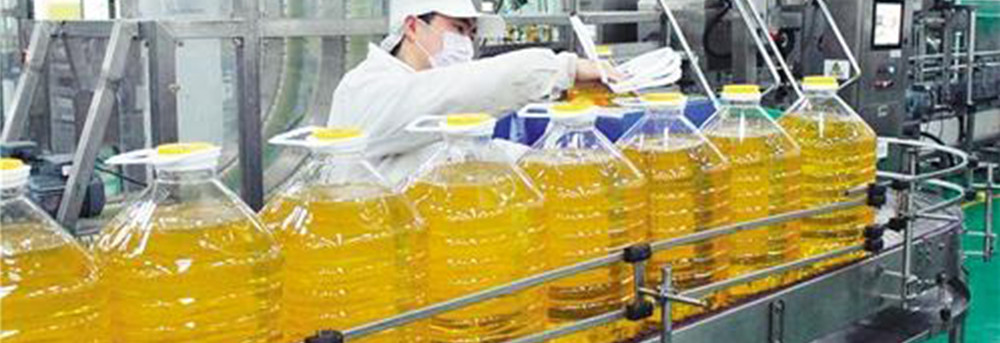

Oil Filling Capping Machine Linear Line
1.Automatic Oil Filling Machine

Application:
Oil, cream, jam, detergent, and other highly viscous material in beverage, food, chemical, pesticide, medical, commodity, and many other industries.

Features:
● Accurate Volume: Servo system is applied ensure the high accuracy of the filling volume.
● Changeable Speed: The filling speed will become slower automatically when approaching the intended volume.
●Submerged Filling: Filling nozzles will submerge in the liquid while filling to avoid foaming and spilling.
● Intelligent Adjustment: You only need to change the parameters on the touch screen for different filling volume or even fine tuning. All filling heads can be adjusted. It has user-friendly interface and is really easy to operate.
●Pollution-free: The main frame of the machine is made of high-quality stainless steel 304 with good anti-corrosive effect. All contacting parts are made of stainless steel 316L. The whole machine is sealed with stainless steel and toughened glass so that waste gas leak will be prevented.

2.Automatic Twisting Capping Machine

Features:
This type of capping machine is widely used for the capping of round, square, or flat bottles with a screw cap.

3.Automatic Sticker Labeling Machine

Features:
This type of labeling machine is widely used for the labeling of round bottles with adhesive stickers. It is controlled by PLC and driven by servo. The user-friendly interface makes it quite easy to operate.
1. The independent electromechanical label rolling structure synchronizes the rolling and labeling processes, thereby improving the labeling accuracy.
2. There is an instruction on the machine showing how the label film convolves so that changing the film becomes easy.

The post Oil flling machine line first appeared on Filling Machine Manufacturer.

Automatic Oil Filling Machine

Features

1. loading intelligent control: the touch screen directly inputs the filling amount, and the loading amount can be automatically calibrated. Switching between different specifications, the adjustment of the loading is extremely convenient, and there is no requirement for the level of the operator. Avoid the trouble of traditional side-by-side trials.

2. PLC intelligent control, with no bottle no filling, no bottle shutdown and other functions.

3. Special anti-drip filling head, better anti-drip effect.

4. The filling head is sprayed to the 2/3 position in the bottle to start filling, and the side is filled and raised to prevent the liquid from being shocked or splashed.

Parameters

Details

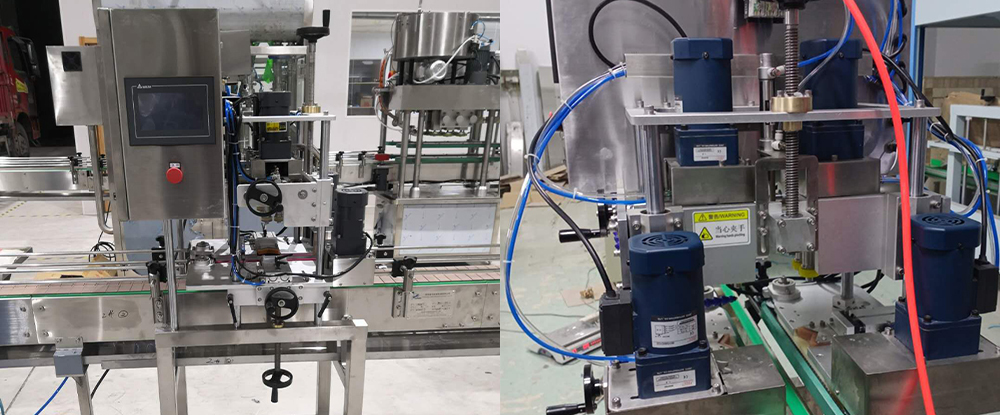

Automatic Capping Machine

Description

coThe in-line capping machine comprises a capping unscrambler and a falling cover groove, a bottle clamping conveying mechanism and a capping wheel transmission mechanism. The bottle completes the action of scraping, glanding and capping during horizontal movement under the action of the bottle-carrying belt, and is suitable for the fitting of round caps and flat bottle (pot) screw caps of various materials. The whole machine has a simple structure and convenient adjustment. It is not necessary to exchange accessories when replacing the bottle type, as long as it is adjusted.

Features

1. The practical equipment is simple, stable, efficient and efficient

2. Wide versatility and economical machine

3. Automatic cap detecting and checking device is installed in the lid barrel, and the capping machine is automatically opened by the cap to ensure the supply of the cap.

4. The intelligent detection reverse cover and the high-speed electromagnetic valve are eliminated, effectively solving the problems of large noise, high gas consumption and low qualification rate, and the adjustment is convenient and fast

5. Automatic cap detecting and checking device is installed in the lid barrel, and the capping machine is automatically opened by the cap to ensure the supply of the cap.

6.Vibration Plate can feed caps one by one

Parameters

Automatic Sticker Labeling Machine

HAY200 Round Bottle Labeling Machine

HAS3500 Square/Flat Bottle Labeling Machine

The post 1-5L Engine Oil Filling Capping Machine first appeared on Filling Machine Manufacturer.

The Smoke Juice Filling Capping Labeling Machine is simple and compacts structure, smooth and reliable operation convenient operation and adjustment, completer functions, if there is ampoules absent at filling station, an automatic stop-filling device can avoid the leakage of liquid solution, the advanced peristaltic pump is used for metering filling, which has the advantages of high metering accuracy, convenient cleaning, does not pollute solution and no drop and leakage from needle, the filling volume adjustment is controlled by PLC, which is easy to operate.

Vertical Ampoule Filling Machine

Features

1. compact structure, occupy less space, suitable for small ampules and milti-specification production and trial.
2. We use imported peristaltic pump, it has high filling accuracy, suitable for many volume filling demand.
3. The conjunction between tabletop and support column that above table was designed as chamfer type, tidy and beautiful, no blind corner of cleaning
4. Adopt mesh-belt and spiral screw to feeding ampoules, avoid the slim ampoule falling over.
5. This machine includes ampoule in-feeding, N2 filling, liquid filling, sealing stations.
6. The machine has one-key calibration function for filling volume, easy and visualized setting.
7. The filling needle is elevated by linear guide rail, ensure needle can accurate insert into ampoule mouth, won’t bump damage ampoule, avoid occur charring spot while melt sealing.
8. Can be installed with ORABS/CRABS grade LAF purifying hood to realize no interrupt production inside equipment (option）
9. Can be equipped with online LAF monitoring system, includes the LAF speed/dust particle quantity /planktonic and sendi-metation bacteria/microbe etc, to meet GMP manufacturer requirements (option)
10. We can custom design equipment according to user production requirements

Technical parameter

Details

HAW Series Labeling Machine

HAW200/300 Economical Horizontal Labeling Machine

HAW600 High Speed Horizontal Labeling Machine

The post Smoke Juice Filling Capping Labeling Machine first appeared on Filling Machine Manufacturer.

Main process:

Bottle feeding table(Rotary type) – Liquid filling – automatic cap loader – automatic capping – round bottle labeling machine – Shrink labeling machine – output.

Bottle Rotary Feeding Machine

Bottle Rotary Feeding Machine

Description

This machine integrates the functions of automatic bottle feeding, automatic positioning, filling, stoppering, and capping. It is widely used in pharmaceutical, biological, daily chemical, chemical and other industries.

Features

1, With touch screen & PLC control, with functions such as no bottle no filling, no bottle no capping. Variable frequency speed regulation, continuously adjustable operating speed.
2, Overload protection and alarm prompt function, more safe and reliable.
3, Intelligent control of filling volume: the touch screen directly inputs the filling volume, and the filling volume is automatically calibrated. It is very convenient to switch between different specifications and adjust the loading volume, and there is no requirement for the level of the operator. Avoid the trouble of traditional test while adjusting.
4, Mechanical claw capping, including torque detection and capping unqualified alarm prompt function, the capping torque can be set on the touch screen, which is convenient and quick, and can greatly improve the capping pass rate and capping quality.

Technical parameter

Details

Round Bottle Sticker Labeling Machine

Shrink Sleeve Labeling Machine Unit

Features

 -Single shrink label feeding tray, microcomputer automatic control;

-Automatic detection, automatic positioning;

-Fast label change, labor-saving, accurate cutting position.

Technical Parameters

Suitable products

The post Automatic Glycerin Filling Capping Labeling Machine first appeared on Filling Machine Manufacturer.
