]]> This Honey Filling Machine Line is widely suitable for high viscosity materials filling capping and labeling. We can equip the whole line from bottle feeder till bottle collector with the complete honey production line.

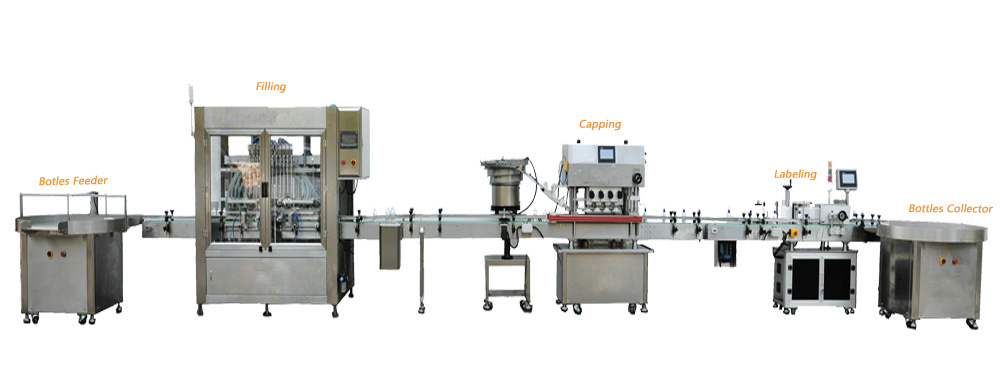

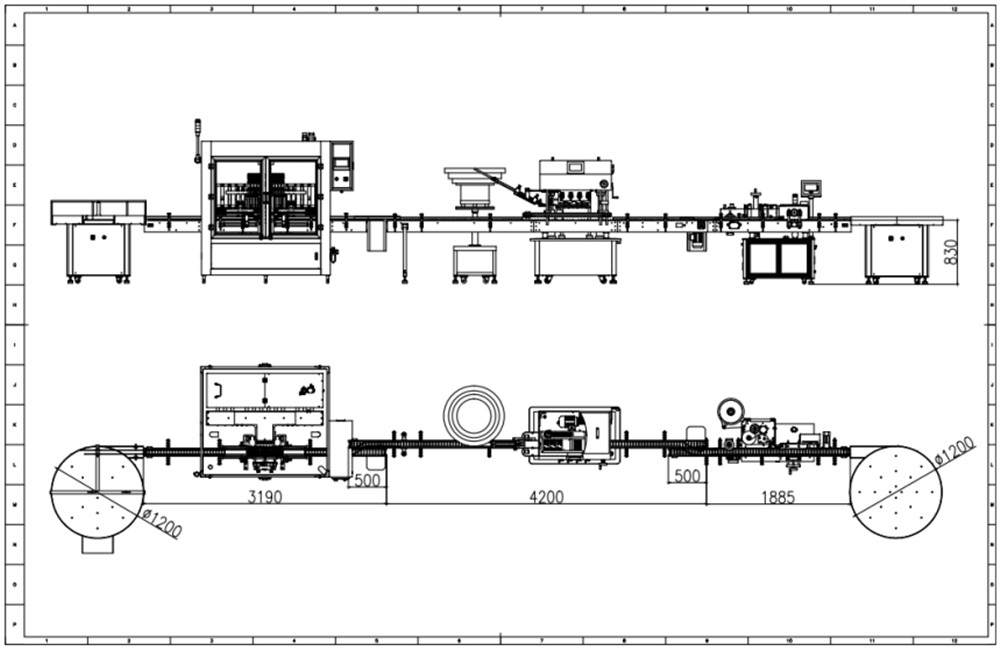

Honey Filling Capping Labeling Machine Linear Line

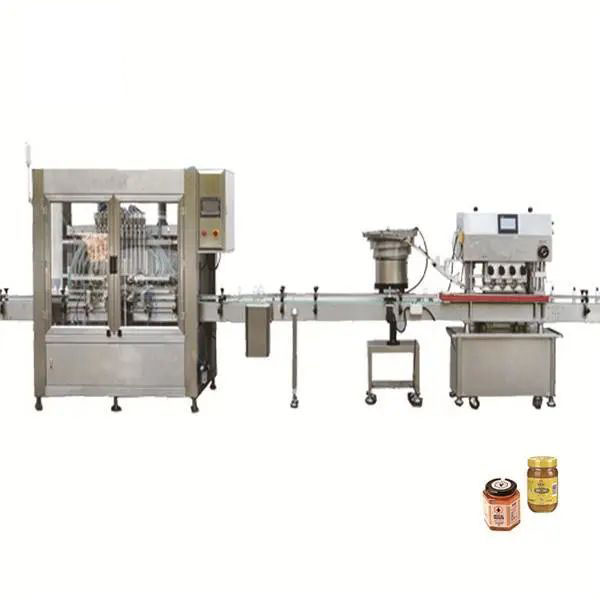

1.Automatic Honey Filling Machine line
Application:
The honey filling machine is suitable for filling different flavor honey or high concentration liquid into various PET or glass bottles with the range from 100ml to 500ml

Features:
Bottle turning table feeder and honey bottle filler are intergrated in one machine. Our machine is fully automatic and have scientific and reasonable design. Also with nice appearance and complete functions, it’s easy to operate and maintain.
Bottle changing is easy. There is no need to adjust the height of machine through neck holding for bottle transportation. Only need to change the spare parts.
The bottle goes through filling and capping with little abrasion. High speed filling valve assures high speed and exact liquid level control.
We all use 304 stainless steel or food level material to ensure the high quality of our machine. PLC control system is used and electric parts are using famous brand like Mitsubishi Siemens Schneider and so on.

The post Honey Filling Machine Line first appeared on Filling Machine Manufacturer.

]]> Tablet Tube Filling Capping Machine https://www.flexfillingmachine.com/tablet-tube-filling-capping-machine/ Sun, 24 Mar 2024 13:34:04 +0000 https://www.flexfillingmachine.com/?p=1458 This machine is applicable to the packing of bigger and thinner tablets which are orderly fed into bobbin bottles/tube in a single row in an overlapping way. The device utterly adopts a PLC for centralized control. It is verified in fiber and photoelectric detection and other kinds of detection to have steady performance and reliably automatic operation. It can automatically give alarms and shut down in case of no tablets, bottles or covers.

The post Tablet Tube Filling Capping Machine first appeared on Filling Machine Manufacturer.

]]> This Tablet Tube Filling Capping Machine is applicable to the packing of bigger and thinner tablets which are orderly fed into bobbin bottles/tube in a single row in an overlapping way. The device utterly adopts a PLC for centralized control. It is verified in fiber and photoelectric detection and other kinds of detection to have steady performance and reliably automatic operation. It can automatically give alarms and shut down in case of no tablets, bottles or covers.

Automatic Effervescent Tablet Filling Capping Machine

Features

1, Cap Vibrating System: Loading caps to hopper manually, automatically arranging cap to rack for plugging by vibrating system.

2, Tablet feeding system: Put Tablets into hopper manually, vibrating and sending tablet to channels automatically for packing preparation.

3, Tube feeding unit: put tubes into hopper manually, shaking system will send tube to rack automatically. Tube direction should be checked by manual before put into hopper

4, Cap Pushing unit: When tube get tablet, cap pushing system will push cap and close tube automatically, no tablet no capping, no tube no capping.

5, Electronic Control Section: This machine is controlled by PLC, cylinder and stepper motor with automatic multi-function alarm system.

Parameters

ItemsParameters
Loading quantity8-30pieces/tube
Capacity20-40 bottles/min
Diameter of tabletФ12-30mm
Thickness of tablet3-8mm
Power supply220V
Purifying compressed air0.5~0.6MP
Power1.5KW
Overall dimensions2400*1600*1800mm
Weight480kg

The post Tablet Tube Filling Capping Machine first appeared on Filling Machine Manufacturer.

]]> Cup Butter Filling machine https://www.flexfillingmachine.com/cup-butter-filling-machine/ Sun, 24 Mar 2024 13:29:17 +0000 https://www.flexfillingmachine.com/?p=1457 It is applicable to packing liquid like water, juice, oil, etc. This machine is designed for cup filling sealing and capping with the following functions:

Process: Automatic feed the cup — filling — film sealing — automatic feed the cap — cap sealing — final product output by conveyor.

The post Cup Butter Filling machine first appeared on Filling Machine Manufacturer.

]]> It is applicable to packing liquid like water, juice, oil, etc. This machine is designed for cup filling sealing and capping with the following functions:

Process: Automatic feed the cup — filling — film sealing — automatic feed the cap — cap sealing — final product output by conveyor.

#image_title

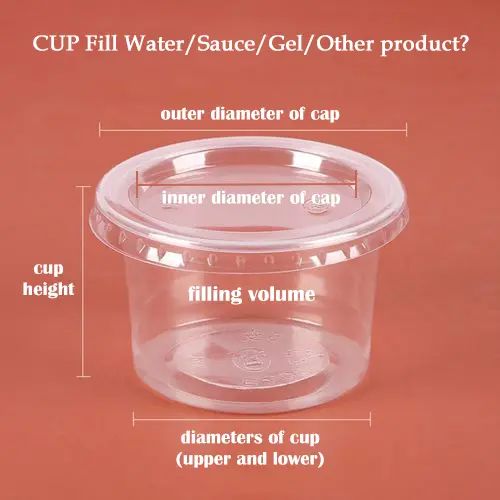

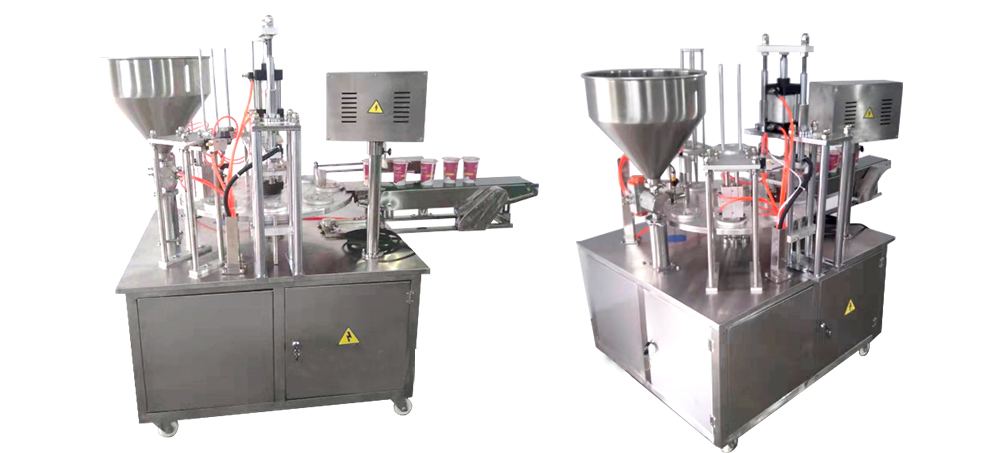

Cup Filling and Sealing Machine

#image_title

Parameters:

ItemsParameters
VoltageSingle phase, 220V, 50Hz.
OutputMax. 900BPH
Filling accuracy±1.5%
Tempt control (film seal part)0-400℃
seal materialPE PP PET/PE
Dimension900*750*1750mm
Weight210kg

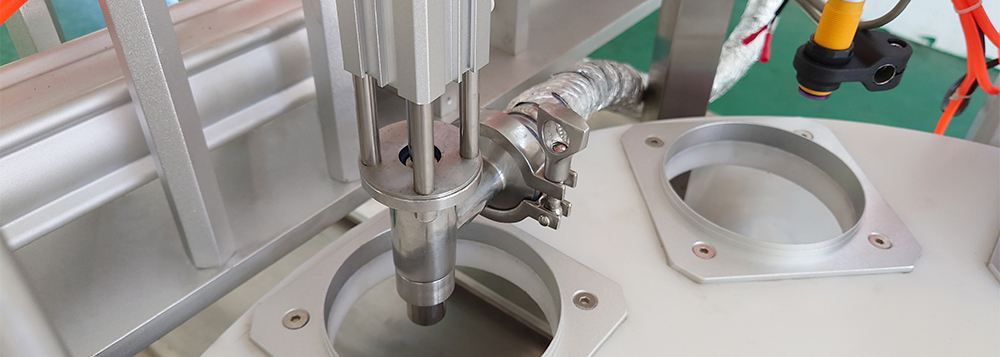

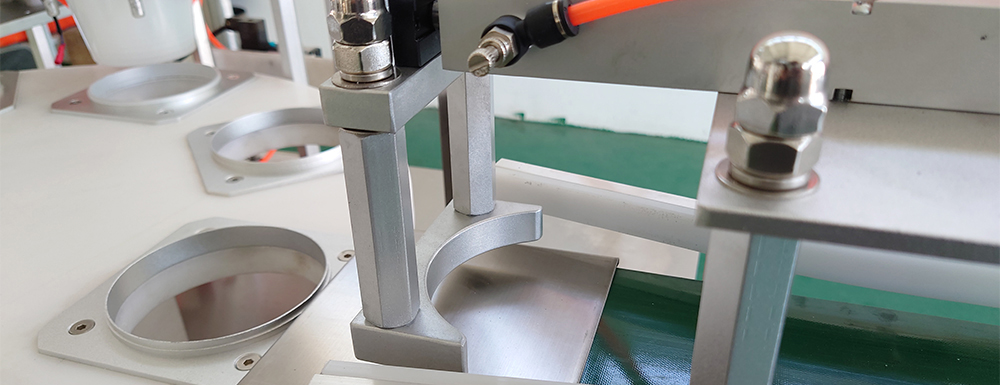

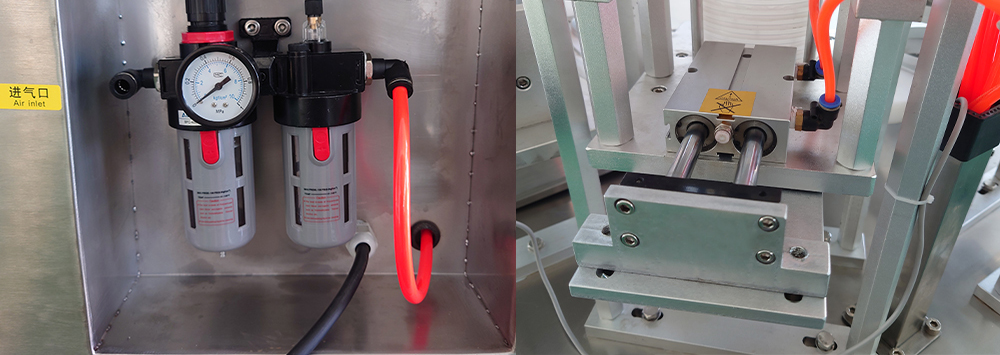

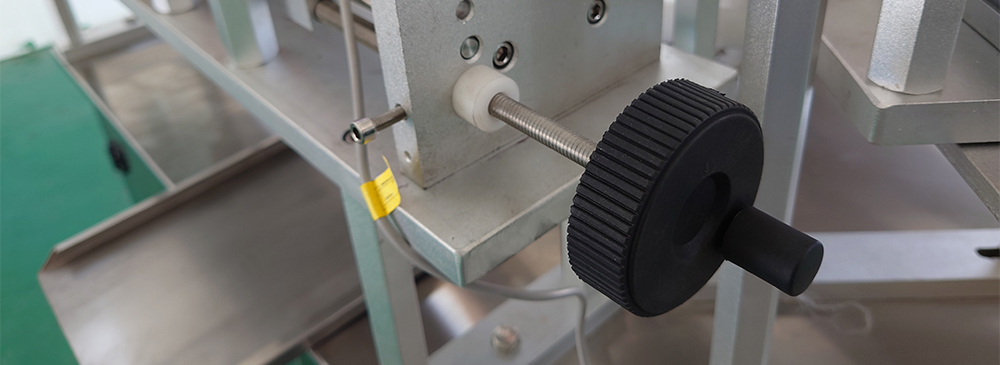

Details:

#image_title
#image_title
#image_title
#image_title

Products

#image_title

The post Cup Butter Filling machine first appeared on Filling Machine Manufacturer.

]]> Automatic Sauce Filling Machine https://www.flexfillingmachine.com/automatic-sauce-filling-machine/ Sun, 24 Mar 2024 13:24:45 +0000 https://www.flexfillingmachine.com/?p=1455 This filling machine is a leaner type filling machine with up hopper, suitable for thick liquid filling into all different kinds of bottles. Product could be such as tomato sauce(ketchup), food paste, cream, honey, jam, etc.

The post Automatic Sauce Filling Machine first appeared on Filling Machine Manufacturer.

]]> This filling machine is a leaner type filling machine with up hopper, suitable for thick liquid filling into all different kinds of bottles. Product could be such as tomato sauce(ketchup), food paste, cream, honey, jam, etc.

#image_title

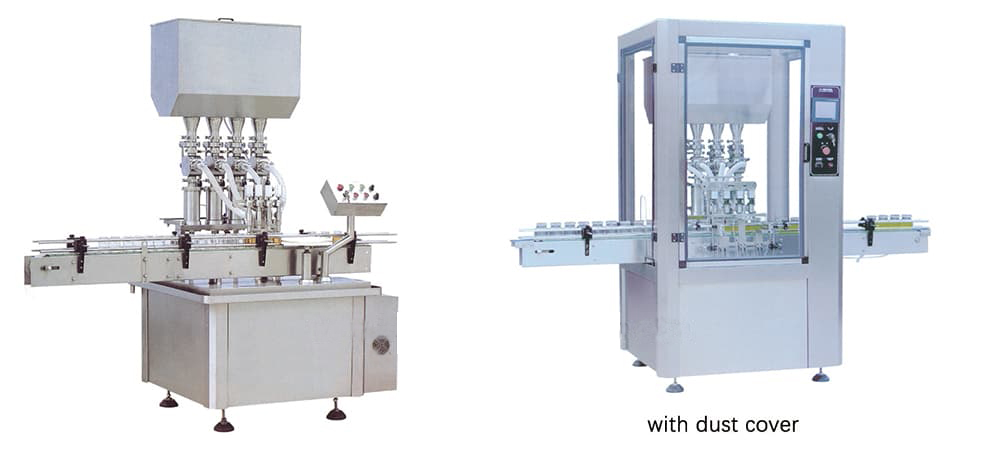

Automatic 4 Heads Paste Filling Machine

#image_title

Features

1, The filling system adopts a full quick-connect design, which can be completely disassembled without tools, and is easy to clean and maintain.

2, Special anti-drip filling head has better anti-drip effect. It has the functions of no bottle no filling and no bottle automatic shutdown.

3, Intelligent control of filling volume: the touch screen directly inputs the filling volume, and the filling volume is automatically calibrated. It is very convenient to switch between different specifications and adjust the loading volume, and there is no requirement for the level of the operator. Avoid the trouble of traditional test while adjusting.

4, With touch screen to control and settings.

Parameters:

ItemsParameters
Filling volume50-500ml(with control system to fill up to 1000ml)
Capacity0～1500 (bottles/hour)
Air source0.6-0.8MPa
Power supply220V/50Hz, 0.5kw
Total Weight400kg
Dimensions2000×800×1800mm
Hopper capacity100L

Related product

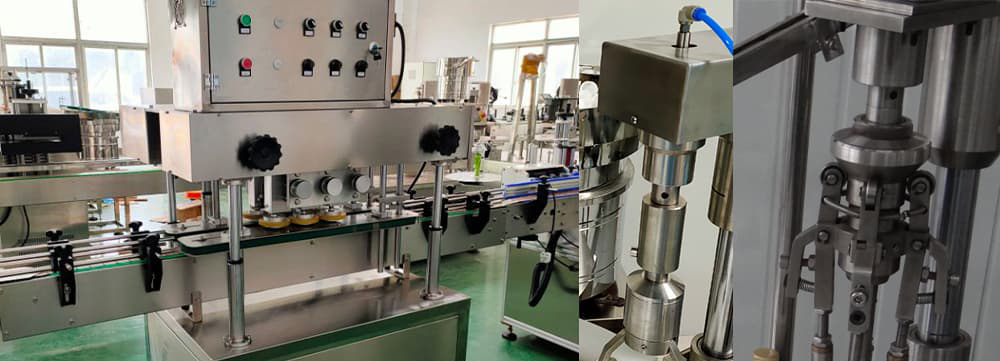

Capping Machine for different types of caps

#image_title

The post Automatic Sauce Filling Machine first appeared on Filling Machine Manufacturer.

]]> Canned Red Beans Filling Machine https://www.flexfillingmachine.com/canned-red-beans-filling-machine/ Sun, 24 Mar 2024 13:20:08 +0000 https://www.flexfillingmachine.com/?p=1428 This is automatic granule filling machine, this equipment is a quantitative cup-type metering filling machine, which is widely used in the food industry to fill grains, beans,coffee bean,red kidney beans,soya bean,chickpeas and other granular materials.

The post Canned Red Beans Filling Machine first appeared on Filling Machine Manufacturer.

]]> This is automatic granule filling machine, this equipment is a quantitative cup-type metering filling machine, which is widely used in the food industry to fill grains, beans,coffee bean,red kidney beans,soya bean,chickpeas and other granular materials.

#image_title

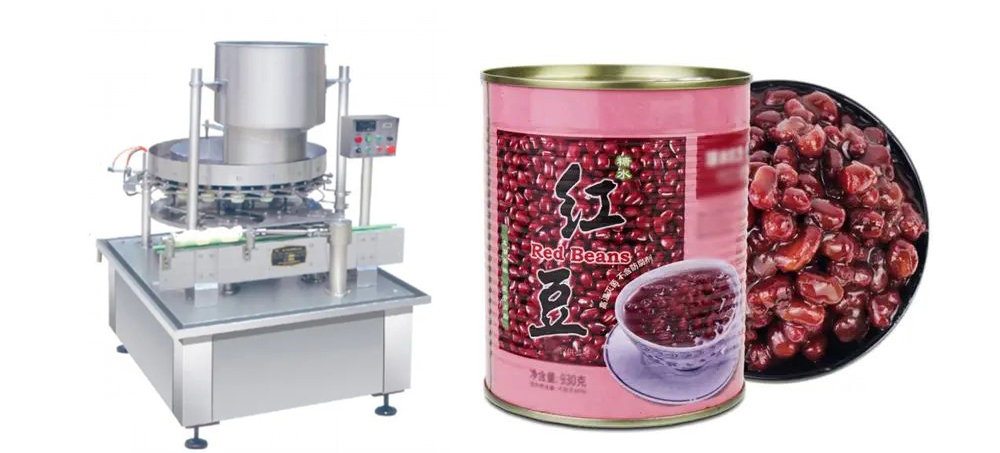

Canned Red Beans Automatic Filling Machine

Description

This equipment adopts a quantitative cup-type metering cup with an adjustable volume, and is equipped with a non-open valve device without a tank and other safety protection devices. The equipment is easy to operate, stable in operation, high in production efficiency, and has a wide range of applications. The outer surface and the parts in contact with the material are made of 304 stainless steel. The feeding part and the measuring part can be washed with water, which meets the food hygiene requirements.

#image_title

Parameters

ItemsParameters
Filling head32
Capacity200-400 (cans/minute)
Applicable tin can height40-150mm
Applicable tin can diameterΦ52-Φ99
Compressed air0.4Mpa
Power supply3phase, 380V/50Hz, 3kw
Dimension2260X2450X2010mm
Total Weight2400kg

The post Canned Red Beans Filling Machine first appeared on Filling Machine Manufacturer.

]]> Canned Corn Filling Machine https://www.flexfillingmachine.com/canned-corn-filling-machine/ Sun, 24 Mar 2024 13:17:41 +0000 https://www.flexfillingmachine.com/?p=1427 This is automatic granule filling machine, this equipment is a quantitative cup-type metering filling machine, which is widely used in the food industry to fill grains, beans,coffee bean,red kidney beans,soya bean,chickpeas and other granular materials.

The post Canned Corn Filling Machine first appeared on Filling Machine Manufacturer.

]]> This is automatic granule filling machine, this equipment is a quantitative cup-type metering filling machine, which is widely used in the food industry to fill grains, beans,coffee bean,red kidney beans,soya bean,chickpeas and other granular materials.

#image_title

Canned Corn Automatic Filling Machine

Description

This equipment adopts a quantitative cup-type metering cup with an adjustable volume, and is equipped with a non-open valve device without a tank and other safety protection devices. The equipment is easy to operate, stable in operation, high in production efficiency, and has a wide range of applications. The outer surface and the parts in contact with the material are made of 304 stainless steel. The feeding part and the measuring part can be washed with water, which meets the food hygiene requirements.

#image_title

Parameters

ItemsParameters
Filling head32
Capacity200-400 (cans/minute)
Applicable tin can height40-150mm
Applicable tin can diameterΦ52-Φ99
Compressed air0.4Mpa
Power supply3phase, 380V/50Hz, 3kw
Dimension2260X2450X2010mm
Total Weight2400kg

The post Canned Corn Filling Machine first appeared on Filling Machine Manufacturer.

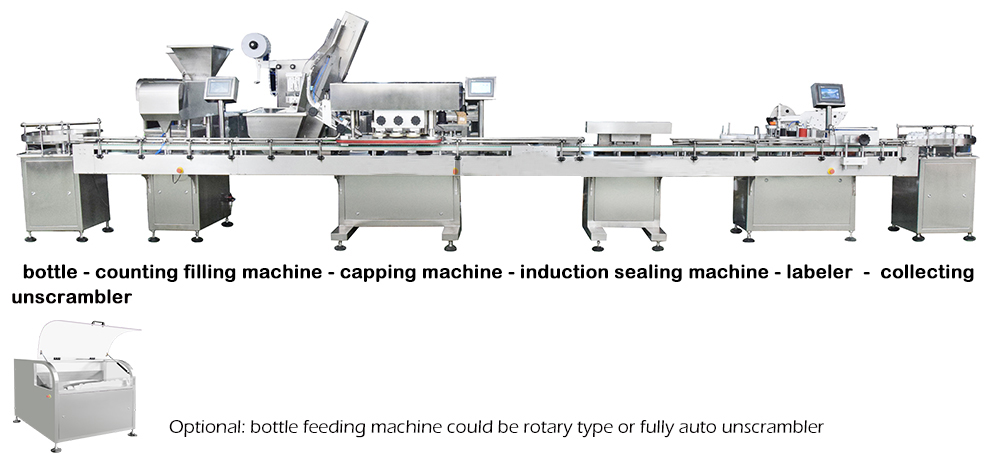

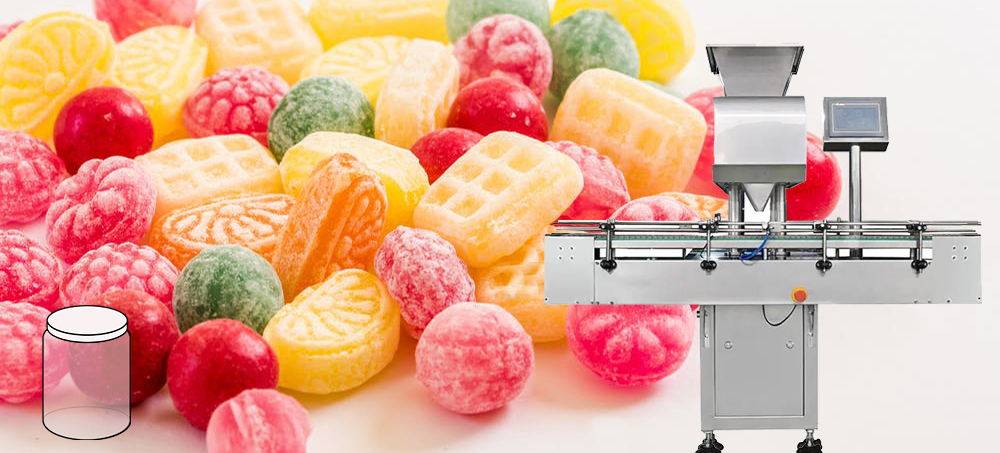

]]> Automatic Candy Counting Filling Line https://www.flexfillingmachine.com/automatic-candy-counting-filling-line/ Sun, 24 Mar 2024 13:15:00 +0000 https://www.flexfillingmachine.com/?p=1426 The automatic counting and filling line consists of the bottle feeding machine(bottle turning feeding table or automatic bottle arranging machine), counting filling machine, desiccant inserting machine, aluminum foil induction sealing machine, labeling machine and bottle collecting machine. If you need box packing machine or bag packing machine, we also have many models for choice.

The post Automatic Candy Counting Filling Line first appeared on Filling Machine Manufacturer.

]]>
#image_title
#image_title

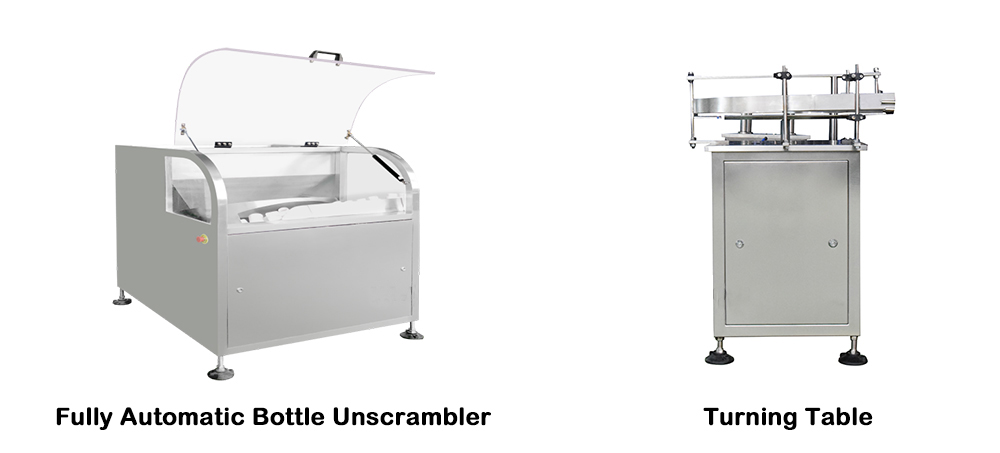

Bottle Unscrambler

#image_title

Parameters

ItemAuto bottle unscramblerTurning table
Power supplySingle phase, 220V
Power consumption0.25kw0.2kw
Feeding speed20-80 Bottles/minute60-80 bottles/min
Total Weight200kg100kg
Dimensions1200×1150×1300mm650 x 650x 1000mm
Automation gradeFully automaticNeed manually put the bottles
FunctionBottle arranging and feedingBottle feeding and collecting

Automatic Electronic Counting Machine

#image_title

Description

Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 8 sets imported counting sensor for counting with 8 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.

Parameters

ItemsParameters
ApplicationFilled capsule(00-5#)Soft Gelatin capsulechewing gumTabletother solid object under machine range
Hopper Volume20L
Capacity20-30bottles(50-100 pcs/bottle)/min
Filling Quantity2-9999pcs/bottle (adjustable)
Bottle SizeDiameter: 30-75mmHeight:40-250mm
Counting SizeThickness: 3-10mmDiameter: 3-22mmLength: 3-30mm
Compressed air0.6Mpa
Machine Weight250kg
Machine Size L × W × H (mm)1360x1300x1700mm

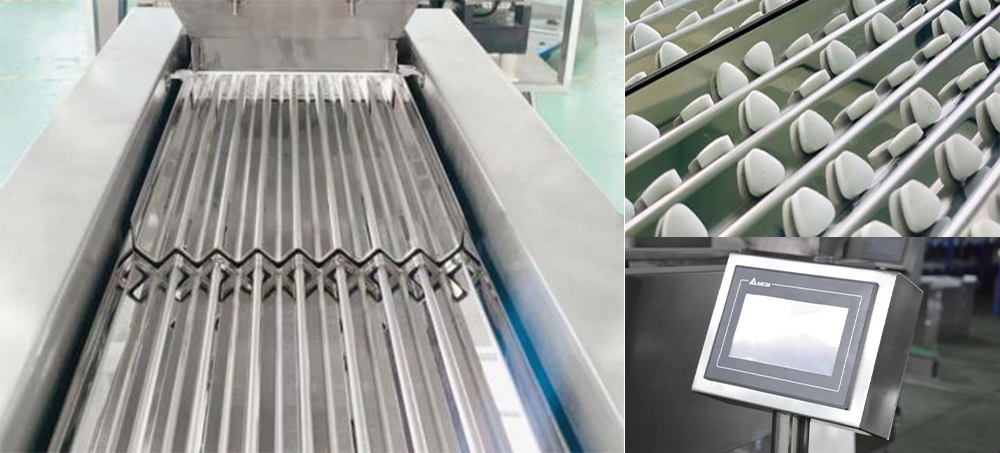

Details

#image_title

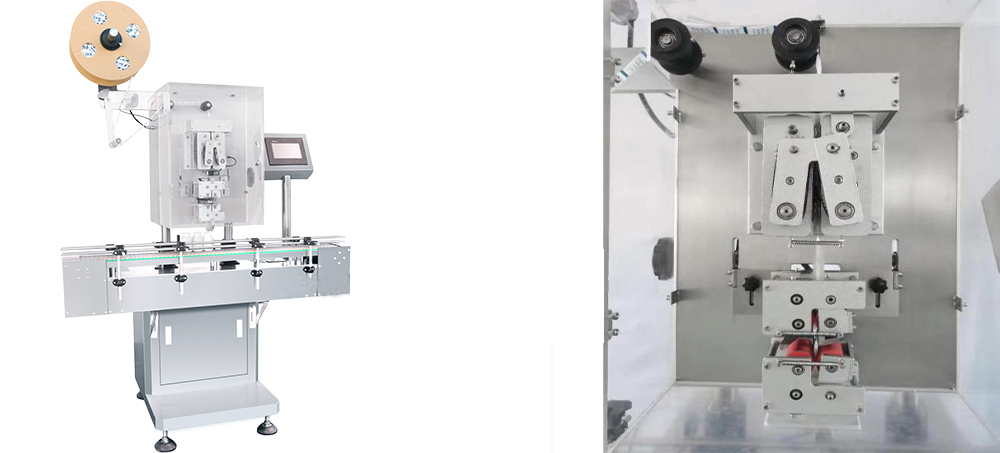

Automatic Desiccant Inserting Machine

#image_title

Description

Tablet and capsule are easy to go moist, so it is necessary to put the desiccant into the container to keep medicine away from moisture in order to improve reliability of guarantee period. The machine applies automatic controlling system to take the place of the previous manual operation. The machine can automatically cut the belted desiccant and insert the desiccant bag into the container accurately and speedily. It is available for bottles and pots made of different materials. It features double-lane photoelectric positioning, intelligent feeding length controlling and automatic adjustment of accumulated length error. The electronic controlling system ensures the machine starts when bottles reach working position and stops when bottles are insufficient automatically. The product conforms to the requirements of GMP completely.

Parameters

ItemsParameters
Bottle Size20-300ml
Output40-100bottles/min
Power Supply220v 60Hz
Power0.85kw
Overall Dimension1150*800*1900mm

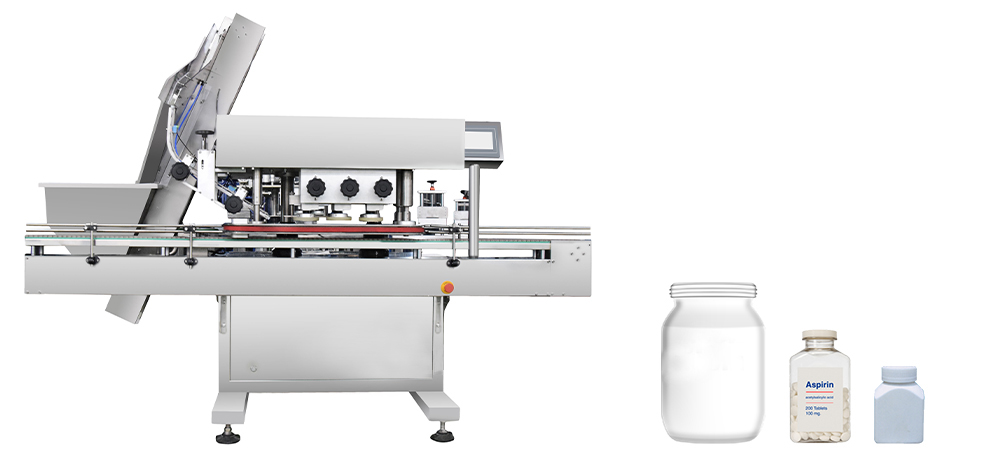

Automatic Capping Machine

#image_title

Description

The screw capper is available for various bottles and its changeover is fast and easy. The machine overthrows conventional means of arranging cap by electromagnetic oscillation but arranges caps pneumatically to avoid noise pollution and reduce electric power consumption. It also provides international brand PLC controls, variable frequency controls and photoelectric controls. The machine is incorporated with the device of arranging and lifting cap and a big capacity of cap hopper, so less cap feeding times reduces labor intensity. Generally operators can grasp fluently. The machine conforms to the requirements of GMP completely.

Parameters

ItemsParameters
Size of bottles20-500 ml
Output50-150 bottles/min
Diameter of capsφ20-65 mm
Diameter of bottlesφ20-120 mm
Power supply220V 60Hz
Power1.5KW
Overall dimensions2160*1050*1900 mm
Weight650KG

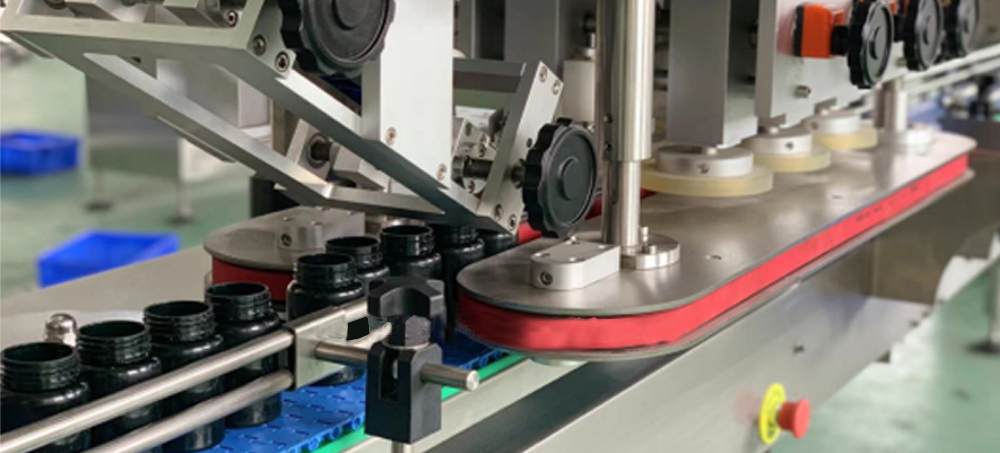

Detail

#image_title

Automatic Sticker Labeling Machine

#image_title

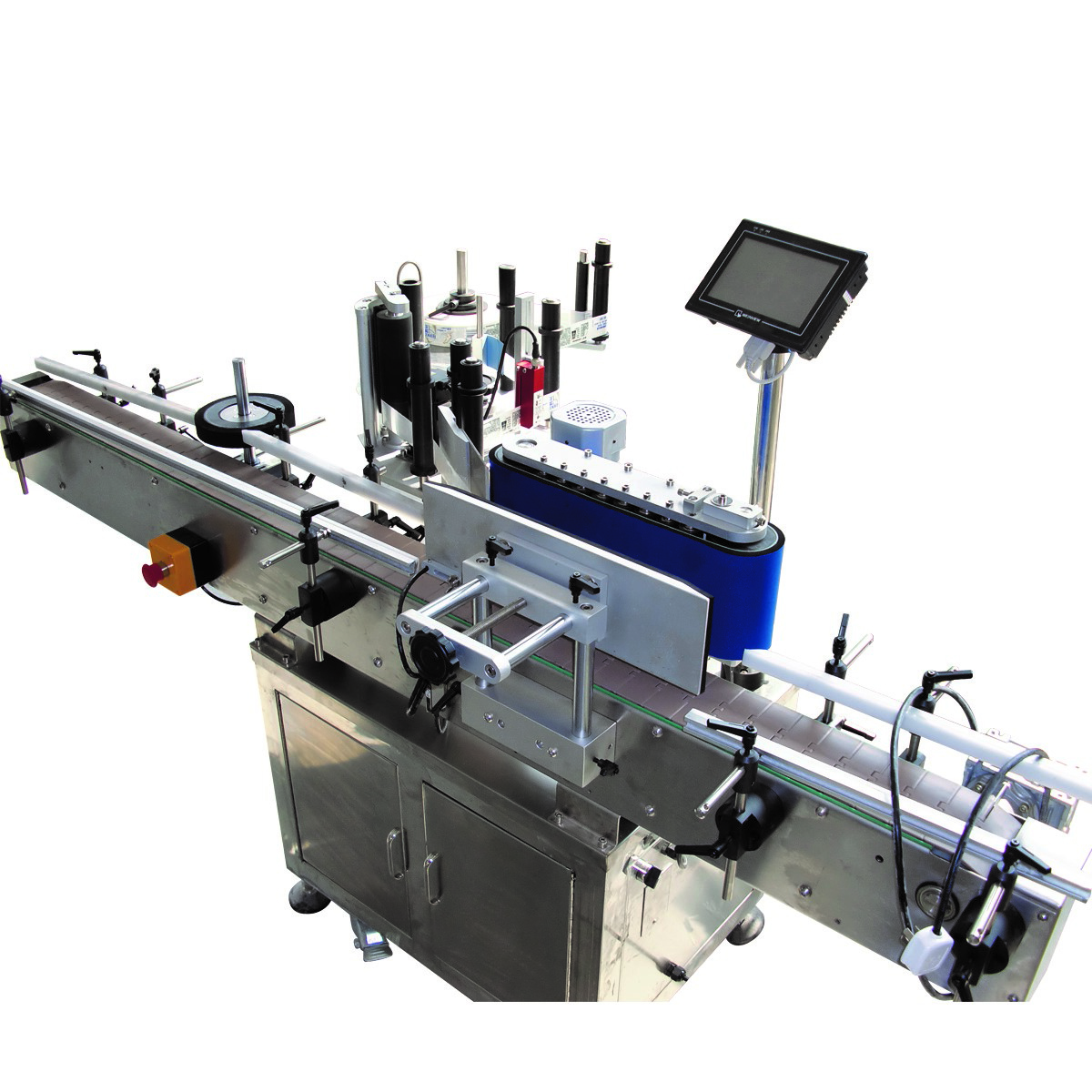

HAY200 Round Bottle Labeling Machine

#image_title

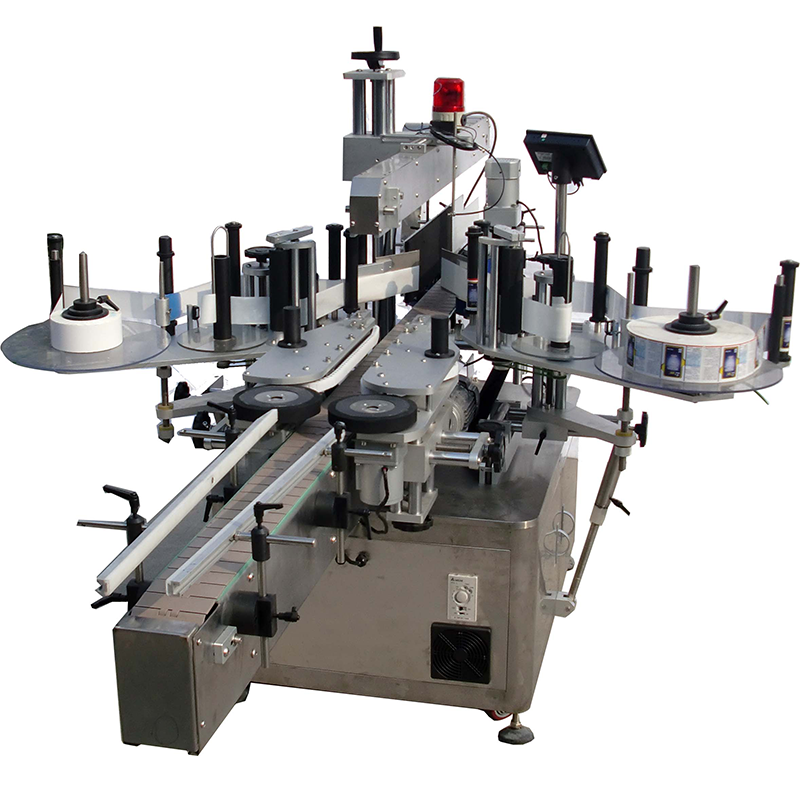

HAS3500 Square/Flat Bottle Labeling Machine

The post Automatic Candy Counting Filling Line first appeared on Filling Machine Manufacturer.

]]> Automatic Canned Luncheon Meat Filling Machine https://www.flexfillingmachine.com/automatic-canned-luncheon-meat-filling-machine/ Sun, 24 Mar 2024 13:08:04 +0000 https://www.flexfillingmachine.com/?p=1425 This is automatic quantitative filling machine, the equipment is suitable for luncheon meat, meatloaf, corned beef, corned mutton, minced beef, minced meat, minced pork, minced chicken etc. this machine includes a quantitative filling machine, a hopper elevator.

The post Automatic Canned Luncheon Meat Filling Machine first appeared on Filling Machine Manufacturer.

]]> This is automatic quantitative filling machine, the equipment is suitable for luncheon meat, meatloaf, corned beef, corned mutton, minced beef, minced meat, minced pork, minced chicken etc. this machine includes a quantitative filling machine, a hopper elevator.

#image_title

Automatic filling machine for canned lunch meat / meatloaf / corned beef / corned mutton / pork / chicken

Description

This is automatic quantitative filling machine, the equipment is suitable for luncheon meat, meatloaf, corned beef, corned mutton, minced beef, minced meat, minced pork, minced chicken etc. this machine includes a quantitative filling machine, a hopper elevator.

#image_title

Technical parameter

ItemSpecifications
Suitable forCanned,round tin cans,oval cans
Diameter of canned73mm -150 mm (can be customized)
Height of canned35~160mm (can be customized)
Production capacity80-100 cans per minute
Main motor power4kw  speed :1440rpm/min
Hopper elevator  motor power1.5kw speed1410 rpm/min
The height of hopper elevator2meters
Hopper200kg
Dimensions2808×2339×3135mm

Contact Qualipak Machinery to know more details!

The post Automatic Canned Luncheon Meat Filling Machine first appeared on Filling Machine Manufacturer.

]]> Bowl Type Automatic Liquid Filling Seaming Machine https://www.flexfillingmachine.com/bowl-type-automatic-liquid-filling-seaming-machine/ Sun, 24 Mar 2024 13:00:36 +0000 https://www.flexfillingmachine.com/?p=1424 This is bowl type automatic cubilose filling sealing machine,the equipment is suitable for the liquid or soup such as cubilose, beverages, protein beverages etc, it is a preferred machine for canning factories and beverage plants.

The post Bowl Type Automatic Liquid Filling Seaming Machine first appeared on Filling Machine Manufacturer.

]]> This is bowl type automatic cubilose filling sealing machine,the equipment is suitable for the liquid or soup such as cubilose, beverages, protein beverages etc, it is a preferred machine for canning factories and beverage plants.

Bowl Filling Sealing Machine

Description

1.Beverage filling seaming machine are of integral design.

2.It is adopts pneumatic control and automatic lowering lid without tin can contact, equal liquid level filling method.

3.In order to improve the vacuum degree in the tank, a steam injection device can be configured according to customer requirements.

4.The overall production speed can be freely set on the touch screen according to requirement by various language.

5. According to the different malfunction levels, the PLC will automatically determine if the operation shall continue or the machine shall be stopped.

6.high quality filling seaming and speed,running steady,good looking and easy to use and maintenance.

Technical parameter

ModelHG4B180HG6B300
 The number of sealing head46
 The number of filling head1830
 Production capacity30-150 cans/min30-300cans/min
 Can Diameter65mm65mm
 Can Height122-160mm122-160mm
 Power7.57.5kw
Weight4000kg5000kg
Dimension3400*1950*1900mm3900*2400*1900mm

Contact Qualipak Machinery to know more details!
