High Speed Water Bottle Labeling Machine

Description

This is automatic hot melt glue labeling machine of leaner type, the label can be BOPP/OPP/OPS. Which is suitable for big capacity production, widely used in water/juice production.

Parameters

Details

Suitable Label

Photos of suitable labels for reference. The material can be BOPP/OPP/OPS, etc.

The post Leaner Type Hot Glue Labeling Machine first appeared on Filling Machine Manufacturer.

Pill Box Flat Surface Labeling Machine

Client’s Product:

This machine is a customized machine based on our standard HAP200 top labeling machine, for small round shape plastic box with a small thickness.

Description:

HAP200 is suitable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. It’s for flat side labeling.

Parameters:

Option

● Coding machine (max. 300pcs/minute)

● Transparent label monitor

Details

Suitable product

The post Small Box Top Labeling Machine first appeared on Filling Machine Manufacturer.

HAW600 High Speed Horizontal Labeling Machine

Description

This is horizontal labeling machine which is suitable for bottles with small diameters such as ampoules, vials, hard tubes, etc. This machine is with a high speed of at least 300 bottles/min.

Features

1.The whole machine is made in SUS304 stainless steel and high grade aluminum alloy.
2.The labeling head adopts imported motor to assure labeling speed and accuracy.
3.The photo electricity and control system adopts advanced component from Germany or Japan or Taiwan.
4.Use PLC man-machine interface control system, which is easy to operate.

Parameters

Details

Final product

Changing parts

The changing part is the must when one labeler should be used for different sizes of ampoules or vials.
There are mainly two device of vertical and horizontal conversion: screw rod, turning device.
It takes some time to replace the changed parts. We recommend that one machine to be used for as few bottle types as possible, that would be better for high speed production.

The post High Speed Ampoule Labeling Machine first appeared on Filling Machine Manufacturer.

Automatic Two Side Flat Surface Labeling Machine

Description

The Top and Bottom Labeling Machine is customized machine based on HAP200, which is used for automatically apply two labels on top and bottom side of products. The suitable products are mainly white out (correction fluid), candy box, cookies box, bagged pasta, cosmetic jar, and many other product that need up and down labeling.

The HAP200 flat surface labeling machine is applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. It’s for flat side labeling.

Features

1.Main body is made by stainless steel & high grade aluminum alloy.
2.Labeling head is driven by advanced step motor which is imported from Japan.
3.All the magic eye is advanced photo detector made in Japan.
4.PLC control system is equipped with human interface, including 60 groups of memory unit.
5.Labeling position and height is adjustable.
6.The transportation height can be adjusted by height of production line.
7.Be able to connect with conveyor and production line
8.Transparent label monitor for option.

Parameters:

Details

Products

The post Top and Bottom Labeling Machine first appeared on Filling Machine Manufacturer.

Automatic Bag Labeling Machine with Auto Feeder

Features

1.Applicable to industries: electronic accessories, food chemicals, electrical accessories, hardware and machinery, auto parts, printing and packaging industries;

2.Applicable product range: carton, flat bottle, round bottle, square box, and other cylindrical/flat body labeling, bar code, electronic supervision code, classification label, etc.;

3.Function: Automatically detect labeling, improve the efficiency of product labeling, accurate attachment position, good quality, and high stability; avoid manual labeling efficiency, skewed attachment, blistering and wrinkles, irregular attachment positions, etc. A series of problems; effectively reduce product costs, improve product label aesthetics, and enhance product competitiveness;

4.The main material of the equipment is stainless steel and high-grade aluminum alloy. The overall structure is firm, beautiful and easy to operate and maintain;

5.The applicable scope of the equipment is customized according to customer samples, the labeling accuracy is +1mm, and the applicable product size can be adjusted arbitrarily within the technical specification;

6.The structure is small and exquisite, and the floor space is small, which is convenient for the movement and placement of the equipment; the equipment includes positioning device, fault alarm function, production counting function, printing function, etc. (reserved)

Parameters

Details

* Suction type feeder

* Labeling position

* Collection tray

Option

– Coding machine (for printing dates/series numbers/lots, etc.)

– Sensor for detecting clear and transparent labels

Suitable products

*Example of some suitable products

The post Automatic Bag/Pouch Labeling Machine first appeared on Filling Machine Manufacturer.

Automatic Flat Labeling Machine with Paging device

Description

The paging labeling machine is customized machine based on HAP200, which is used for automatically feeding and labeling. The suitable products are mainly flat sheet type product such as paper, envelope, tag, plastic bags, etc.

The HAP200 flat surface labeling machine is applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. It’s for flat side labeling.

Features

1. Main body is made by stainless steel & high grade aluminum alloy.
2. Labeling head is driven by advanced step motor which is imported from Japan.
3. All the magic eye is advanced photo detector made in Japan.
4. PLC control system is equipped with human interface, including 60 groups of memory unit.
5. Labeling position and height is adjustable.
6. The transportation height can be adjusted by height of production line.
7. Be able to connect with conveyor and production line
8. Transparent label monitor for option.

Parameters

Details

Similar Machine

Automatic pouch labeling machineis also mainly used for sheet type product but with irregular bumps(such as standing pouch with zipper or breathing valve), or there is a certain thickness (such as metal plate, anti-shock envelope, etc.), which cannot be fed with a paging device.

Click the photo above to know more related information.

The post Automatic Paging Labeling Machine first appeared on Filling Machine Manufacturer.

20L jerrycan labeling machine

Description

The double side Jerrycan labeling Machine is suitable for flat bottle or Jerry can one or two sides labeling machine, this machine is customized for big, heavy product, such as 20L, 25L fulled bottle.

Features

1. It can make labeling on both top or side left or right side at the same time efficiently. Of course client can choose to make one side or double sides labeling.
2. Client can choose to add coding machine.
3. It can work separately or work connecting with conveyor.
4. Equipped with touch screen & PLC control system.

Parameters

■ Size of Machine:2800(L)×1300(W) (one side labeling, height of machine will be customized according to the production line of the client)

■ Height of conveyor: 450-500mm by default. (If there is a specified height requirement, please provide it in time)

■ Labeling Speed: Max. 10 meter per minute. (conveyor speed)

■ Height of Object:  Customized

■ Thickness of object:  Customized

■ Height of Label: Customized

■ Length of Label: Customized

■ Accuracy of Labeling: ±1mm (excluding object and label error)

■ Label roller inside diameter: 76mm

■ Label roller outside diameter: 320mm

■ Power Supply:220V 3.5kw 50/60HZ (if the power supply different, a transformer is needed)

■ compressed air consumption：5Kg/cm2 (if add the coding machine)

■ Wight: Abt. 300kg.

Details

Suitable product

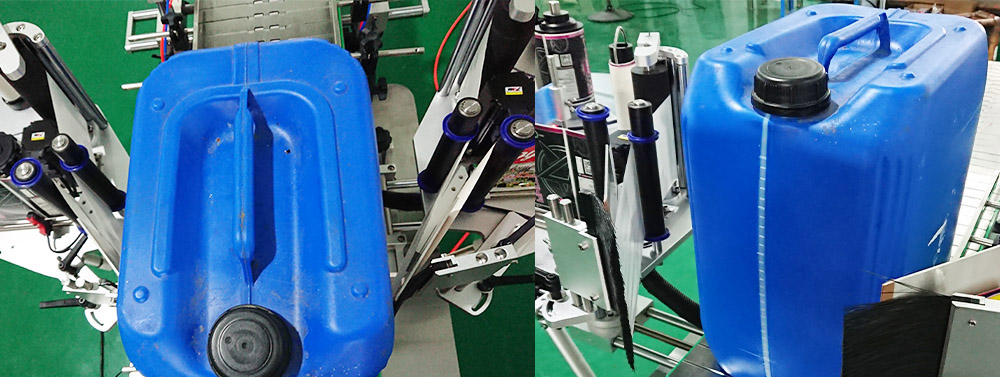

Filled heavy product like photo below.

Contact Qualipak Machinery to know more details!

The post Automatic 5-30kg Jerrycan Labeling Machine first appeared on Filling Machine Manufacturer.

Glass Bottle Wet Glue Labeling Machine

Description

This machine is suitable for sticking a paper label on a cylindrical container. Film-coated labels with suitable flatness, hardness and thickness can also be attached. Whether the label is appropriate or not depends on the trial sticker. The machine adopts our unique gluing scheme to eliminate glue leakage at the bottom of the label box, making the glue range wider.

Parameters

Details

Labels

The labels usually are paper label in pieces, not in roll. It can be short or long.

The post Glass Bottle Cold Glue Labeling Machine first appeared on Filling Machine Manufacturer.

Horizontal Cold Glue Labeling Machine

Description

This is automatic tin can labeling machine , this machine is suitable for metal tin cans such as paste food tin can, canned fruit tin, beef food tin, cat food can etc.

Machine layout

Features

1.This machine is used for metal tin labeling. The tin rolled into the machine, by the pressure in the tin rolling on the belt drive, when the tin pass through the hot melt adhesive points, can be coated with a hot melt adhesive, along with the moving of tin, the tin part with glue will press the front of the label and stick the label on, and began to be rolled in on the tin. At the same time, the label end was glued by gluing mechanism. With the tin moving on, the label has been affixed to the tin on a roll. Then get out of the machine driven by rolling belt.

2.This machine has alternately label supply mechanism, no need to stop the machine when add label.

3.The end glue supply is controlled by tin. It will not supply glue if without tin.

4.Machines using frequency control can be adjusted according to production requirement.

5.The machine is only to change a few parts for replacing different size tin, the label adhesive only in two ends, with less glue and low cost.

Parameters

Labels

The labels usually are paper label in pieces, not in roll. It should be full wrapped of the tin can.

Conveyor and connecting parts

The post Tin Can Label Pasting Machine first appeared on Filling Machine Manufacturer.
