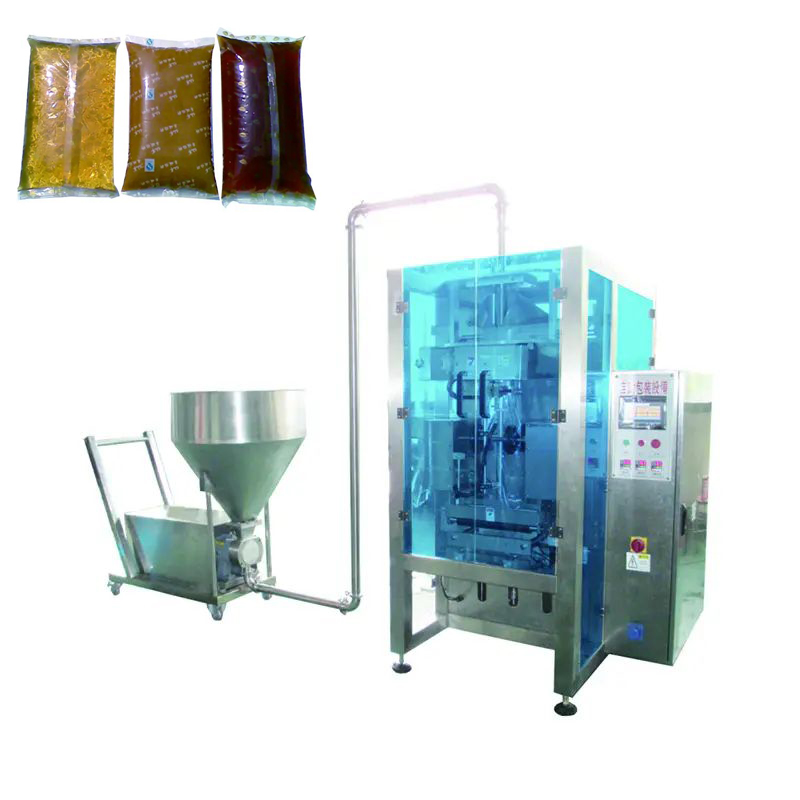

This Automatic paste packing machine is suitable for packaging non-liquid pastes or sauces, packed in bags. This is a fully automatic packing machine including automatic feeding by pump, automatic bag forming filling and sealing, final product output transporting.
Sachet Sauce/Paste Packing Machine
Application
This machine is suitable for packaging non-liquid pastes or sauces, packed in bags.
Description
1.The production line supporting machinery in addition to marked materials are stainless steel, all machine structures are in accordance with food hygiene standards selected design;
2.The material contact with the container material are food grade SUS304;
3.Often dismantling the structure are easy to dismantle the connection, to ensure that the shift or change the product when dealing with health convenience;
4.The production line of the normal production needs 1-2 employees.
5.The above program for customers to change, please notify the relevant person in charge of the Company, do the relevant adjustments.
Parameters
| No. | Items | Parameters |
| 1 | Bag making size | L:150-450mm, W:100-250mm |
| 2 | Packing weight | 100-2500g |
| 3 | Packing speed | 10~15 bags/min |
| 4 | Packing precision | ±1%g |
| 5 | Power supply | Three phase 380V, 50-60HZ |
| 6 | Total power | 10.5KW |
| 7 | Machine dimension | 2500*1000*2000mm |

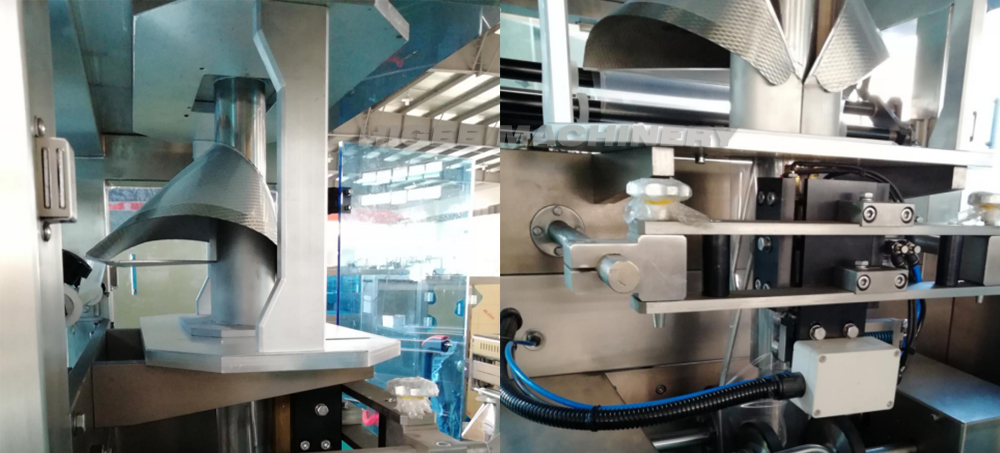

Details

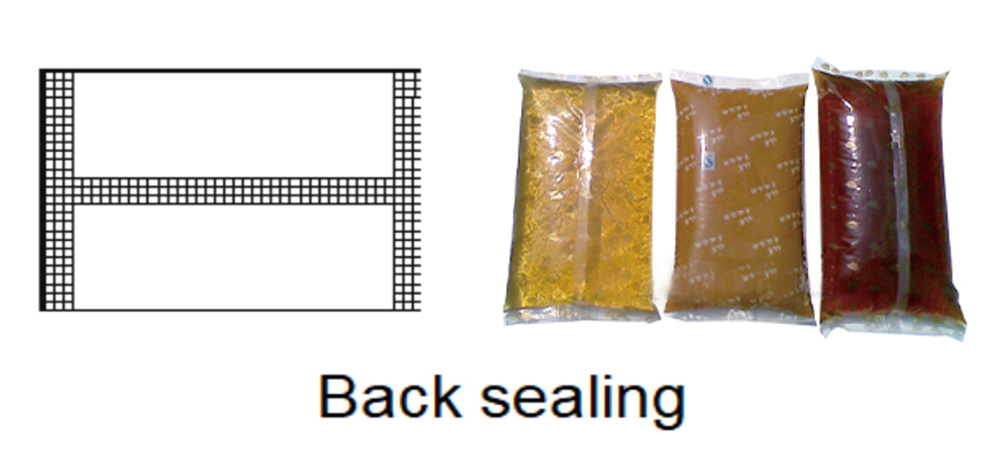

Sealing type:
The machine is in back sealing way.
